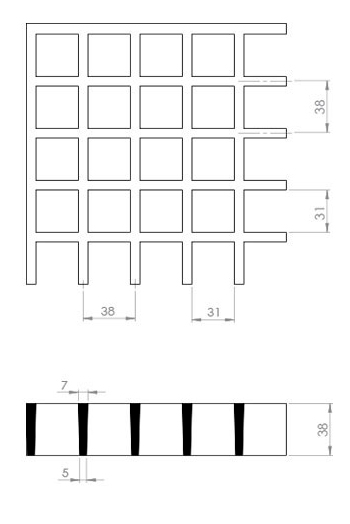

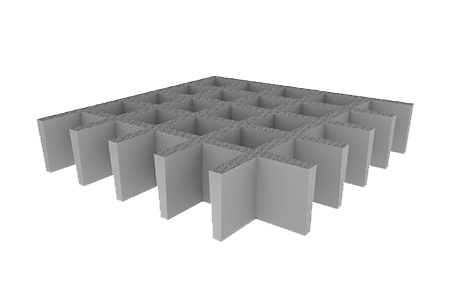

Grating 38x38x38

Grating 38x38x38
Plate Size 2026 x 1000mm
Fire Resistance
Anti-slip surface R13
Weight 19,5 kg/m2
Finish: Gritted
Colour: Grey
68% open surface

TABLE WITH DEFORMATION VALUES IN MM
Support spacing (mm) Uniformly distributed load (Kg/m2) Max. permissible load Kg/m2 Breaking load Kg/m2
100 150 200 250 500 750 1000
200 0,0 0,0 0,0 0,0 0,0 0,0 0,0 54767 219119
300 0,0 0,0 0,0 0,0 0,0 0,0 0,1 16215 64912
400 0,0 0,0 0,0 0,1 0,1 0,1 0,2 6830 27375
500 0,1 0,1 0,1 0,1 0,2 0,4 0,5 3489 14007
600 0,1 0,2 0,2 0,3 0,5 0,8 1,0 2011 8099
700 0,2 0,3 0,4 0,5 0,9 1,4 1,9 1260 5094
800 0,4 0,5 0,7 0,8 1,6 2,4 - 838 3406
900 0,6 0,8 1,1 1,3 2,6 - - 584 2387
1000 0,9 1,3 1,7 2,0 - - - 421 1736
1250 2,2 3,1 4,1 - - - - 207 880
1500 4,6 - - - - - - 112 502
